Rolux X Series Parts Lookup
Select an assembly below to view parts diagrams and order components.

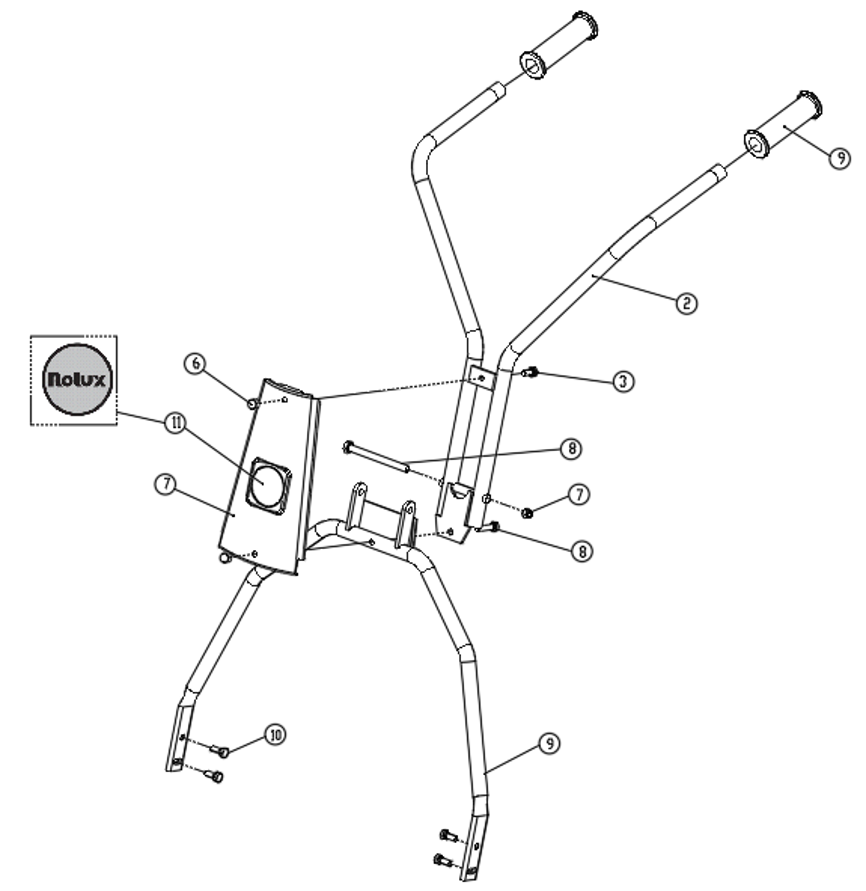

Complete Handle Assembly
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 2 | Upper Handle | Find part | ||
| 3 | Hex Head Bolt M8*20 | Find part | ||
| 4 | Dome Nut M8 | Find part | ||
| 5 | Rubber Grip | Find part | ||
| 6 | Hex Head Bolt M10*110 | Find part | ||
| 7 | Nyloc Nut M10 | Find part | ||
| 8 | Hex Head Bolt M8*40 | Find part | ||
| 9 | Lower Handle | Find part | ||
| 10 | Bolt Hex Head M8*20 | Find part | ||
| 11 | Logo Plate Domed Label | Find part |

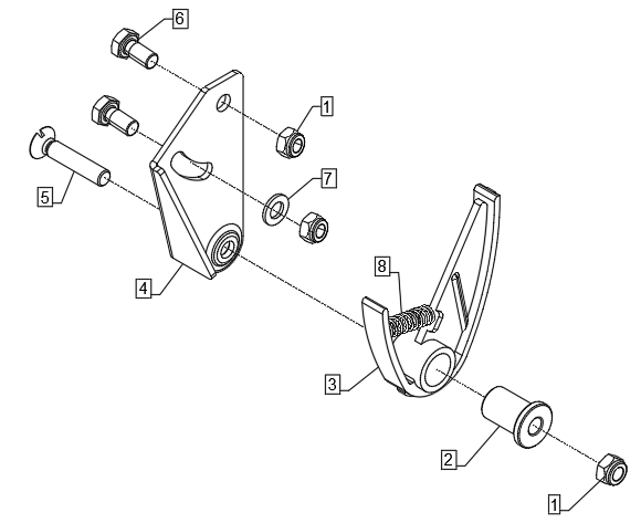

Chain Tensioner
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Nylon lock nut M8 | Find part | ||
| 2 | Chain Tensioner Bush | Find part | ||
| 3 | Chain Tensioner | Find part | ||
| 4 | Chain Tensioner Bracket | Find part | ||
| 5 | Countersunk Head Screw M8*40 | Find part | ||
| 6 | Hexagonal head bolt M8*16 | Find part | ||
| 7 | Flat Washer M8 | Find part | ||
| 8 | Chain Tensioner Spring | Find part |

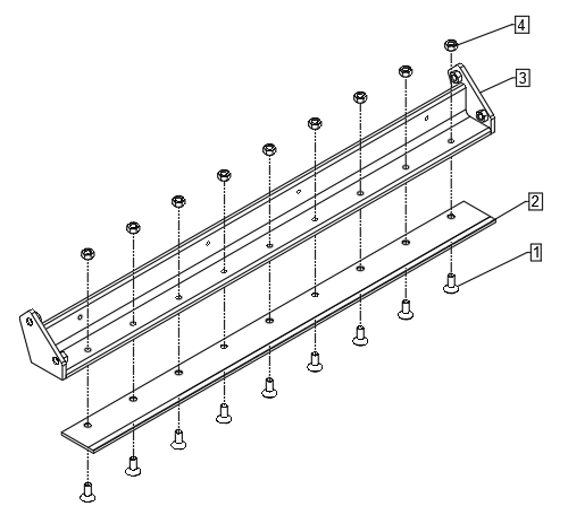

Sole Plate Assembly with Bedknife
Rolux X Series Reel Mower
Height of Cut Adjuster
Rolux X Series Reel Mower

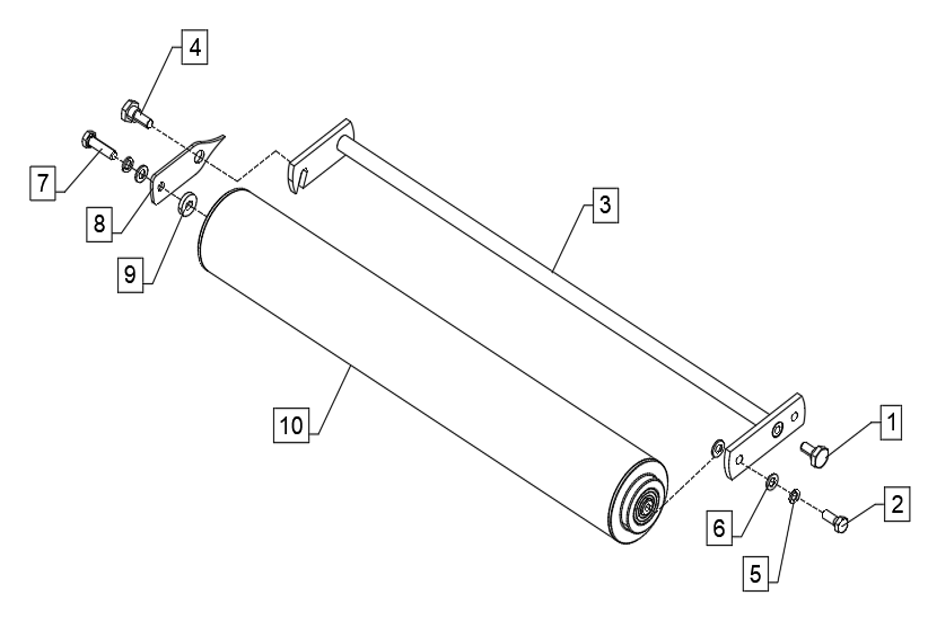

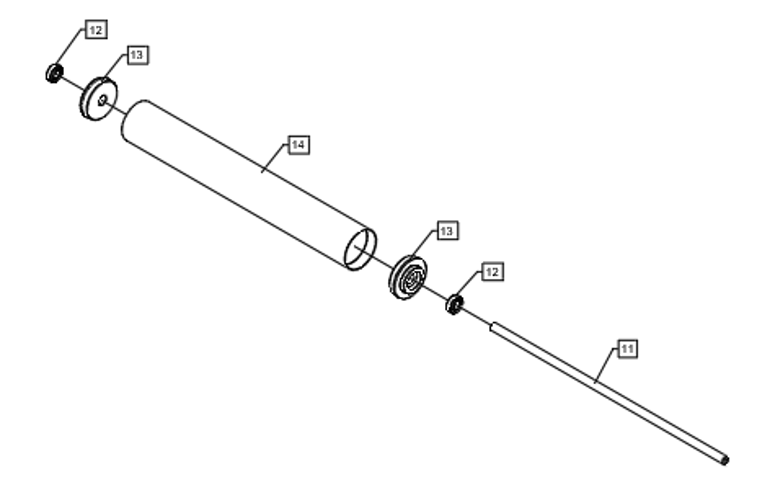

Front Roller Assembly
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Shoulder bolt -LH | Find part | ||
| 2 | Hex Head Bolt M8*20 | Find part | ||
| 3 | Front Roller Bracket | Find part | ||
| 4 | Shoulder bolt -RH | Find part | ||
| 5 | Lock Washer M8 | Find part | ||
| 6 | Washer M8 | Find part | ||
| 7 | Hex Head Bolt M8*30 | Find part | ||
| 8 | Indicator Plate | Find part | ||
| 9 | Indicator Plate Bushing | Find part | ||
| 10 | Complete Front Roller | Find part | ||
| 11 | Front Roller Shaft | Find part | ||
| 12 | Ball Bearing 6002-2Z | Find part | ||
| 13 | Front Roller End Cap | Find part | ||
| 14 | Front Roller Tube | Find part |

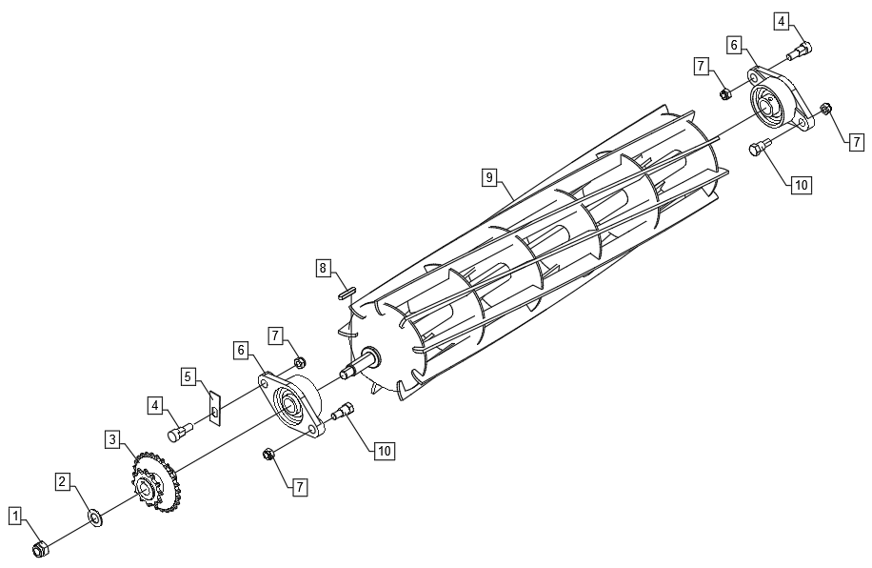

Cutting Reel Assembly
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Nyloc Nut M12 | Find part | ||
| 2 | Washer 24*13*1.5 | Find part | ||
| 3 | Cutter Sprocket Petrol | Find part | ||
| 4 | Cutter Bolt | Find part | ||
| 5 | Dust Cover | Find part | ||
| 6 | Standard Cylinder Bearing | Find part | ||
| 7 | Nyloc Nut M8 | Find part | ||
| 8 | Straight Key 5*5*30 | Find part | ||
| 9 | 6 Blade Reel | Find part | ||
| 9 | 9 Blade Reel | Find part | ||
| 10 | Pivot Bolt | Find part |

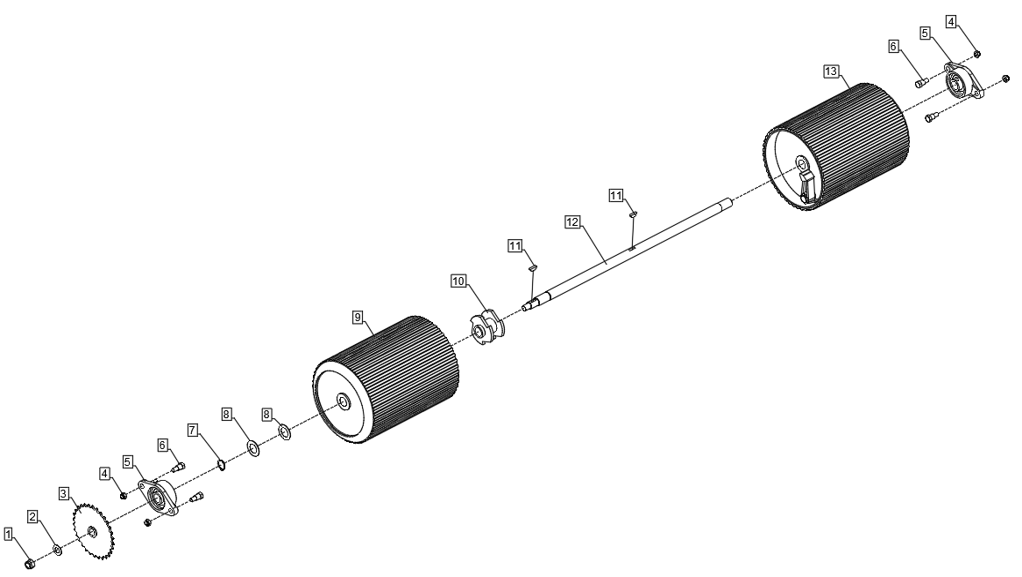

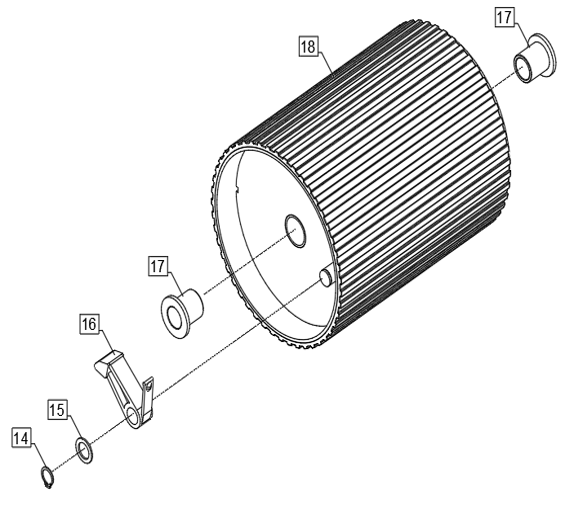

Rear Roller Assembly
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Nyloc Nut M12 | Find part | ||
| 2 | Washer 24*13*1.5 | Find part | ||
| 3 | Rear Drum Sprocket | Find part | ||
| 4 | Nyloc Nut M8 | Find part | ||
| 5 | Standard Cylinder Bearing | Find part | ||
| 6 | Pivot Bolt | Find part | ||
| 7 | E Clip 15mm | Find part | ||
| 8 | Flat Washer | Find part | ||
| 9 | Rear Roller Assembly-LH | Find part | ||
| 10 | Real Roller Ratchet | Find part | ||
| 11 | Woodruff key 5*7.5*19 | Find part | ||
| 12 | Rear Roller Shaft | Find part | ||
| 13 | Rear Roller Assembly-RH | Find part | ||
| 14 | Circlip | Find part | ||
| 15 | Pawl Washer | Find part | ||
| 16 | Rear Roller Pawl | Find part | ||
| 17 | Brass Bush | Find part | ||
| 18 | Rear Roller Half Section | Find part |

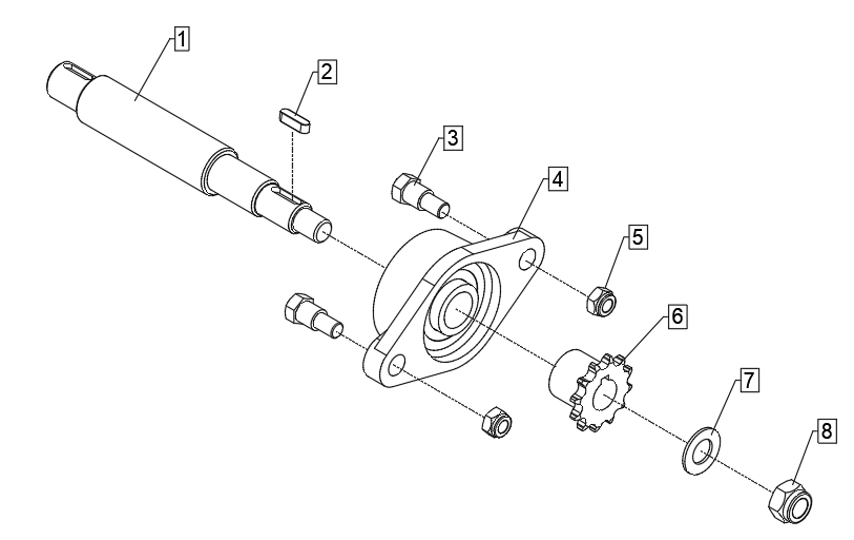

Drive Shaft Assembly
Rolux X Series Reel Mower

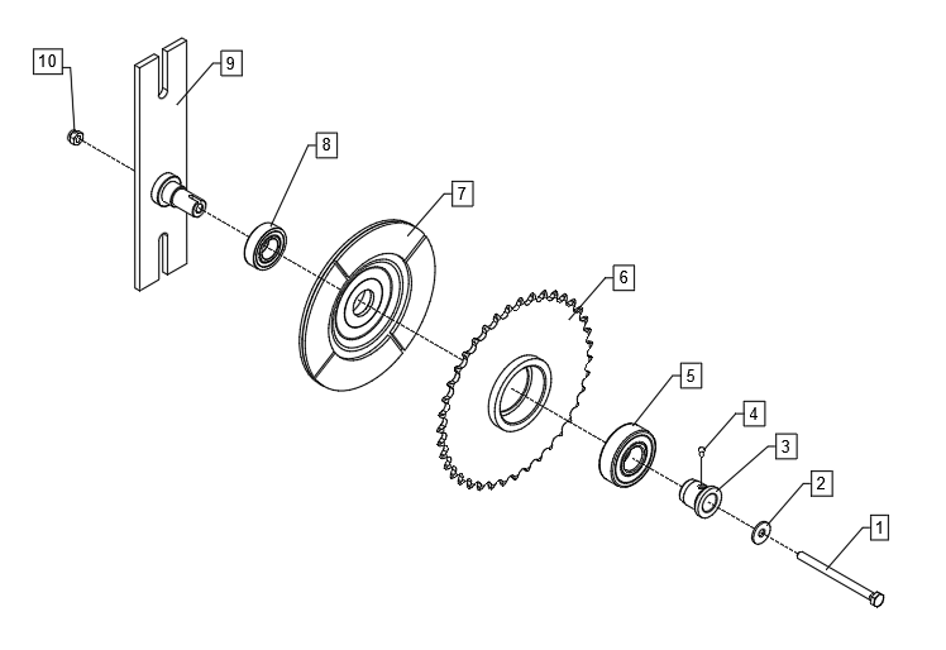

Inter Sprocket Assembly
Rolux X Series Reel Mower
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Hex Head Bolt M6*80 | Find part | ||
| 2 | Flat Washer M6x20 | Find part | ||
| 3 | Clutch Sleeve | Find part | ||
| 4 | Rivet Pin | Find part | ||
| 5 | Inter Sprocket Bearing | Find part | ||
| 6 | 39 Tooth Sprocket | Find part | ||
| 7 | Clutch Back Plate 3/4 | Find part | ||
| 8 | Clutch Plate Bearing | Find part | ||
| 9 | Inter Sprocket | Find part | ||
| 10 | Nyloc Nut M6 | Find part |

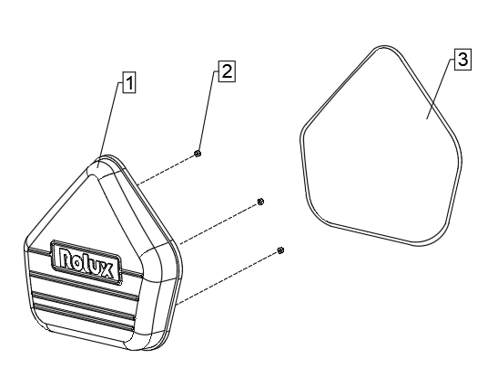

Chain Cover Components
Rolux X Series Reel Mower

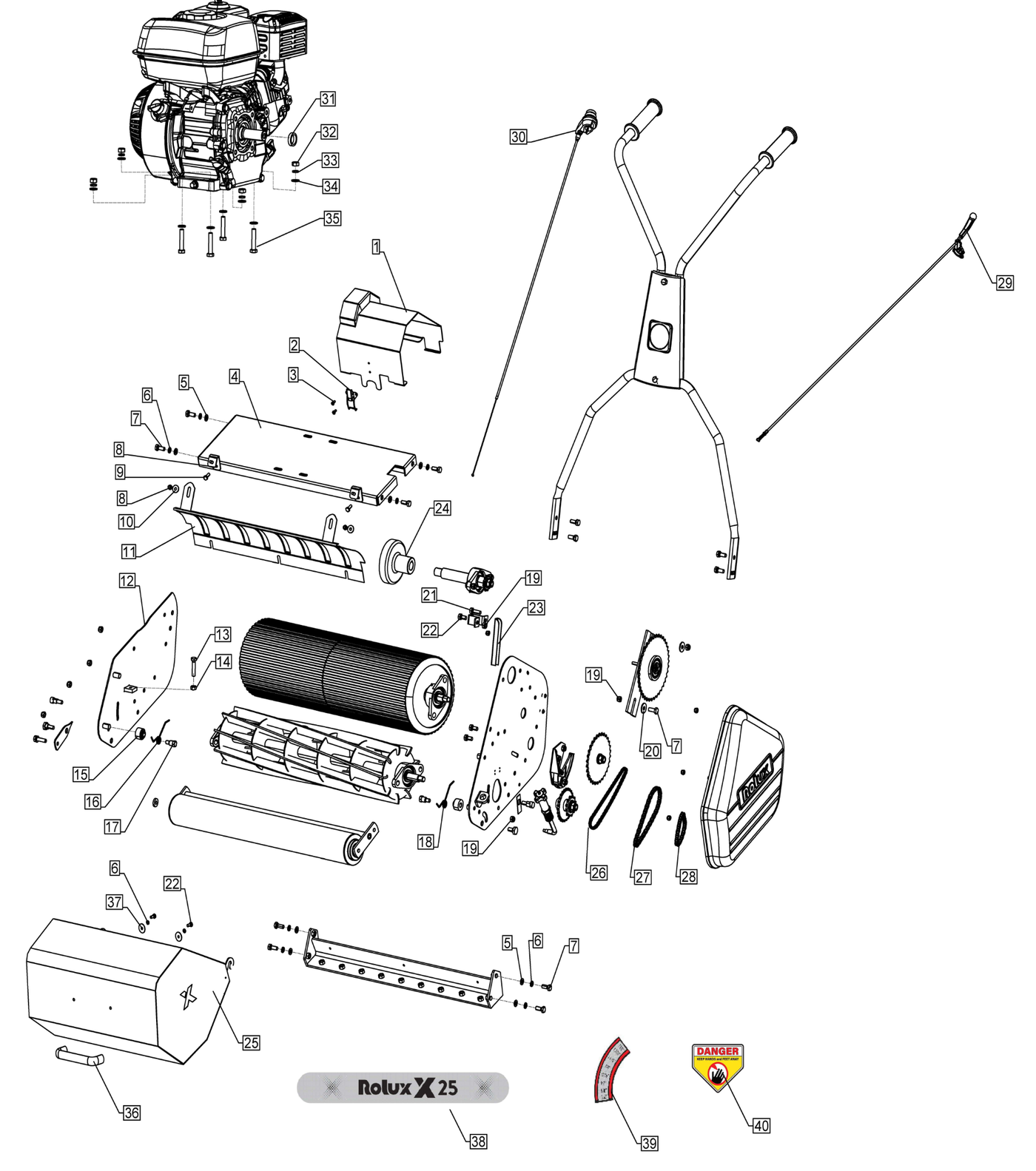

X Series Body Components
Rolux X Series Reel Mower
Click the diagram to get hotspot coordinates
| Select | No. | Description | Part Numbers | |
|---|---|---|---|---|
| 1 | Clutch Cover | Find part | ||
| 2 | Toggle latch | Find part | ||
| 3 | Screw Pan head M4 | Find part | ||
| 4 | Engine Platform | Find part | ||
| 5 | Flat Washer M8 | Find part | ||
| 6 | Lock Washer M8 | Find part | ||
| 7 | Hex Head Bolt M8*20 | Find part | ||
| 8 | Nyloc Nut M6 | Find part | ||
| 9 | Hex Head Bolt M6x14 | Find part | ||
| 10 | Washer M6 | Find part | ||
| 11 | Deflector Plate | Find part | ||
| 12 | Side Plate RH | Find part | ||
| 13 | Hex Head Bolt M8*40 | Find part | ||
| 14 | Nut M8 | Find part | ||
| 15 | Grass Catcher Rubber Support | Find part | ||
| 16 | Cutter Return Spring RH | Find part | ||
| 17 | Pivot Bolt | Find part | ||
| 18 | Cutter Return Spring LH | Find part | ||
| 19 | Nyloc Nut M8 | Find part | ||
| 20 | Washer M8 | Find part | ||
| 21 | Hex Head Bolt M8*25 | Find part | ||
| 22 | Hex Head Bolt M8*16 | Find part | ||
| 23 | Supporting bracket | Find part | ||
| 24 | Complete Clutch Unit | Find part | ||
| 25 | Grass catcher weldment | Find part | ||
| 26 | 38 Pitch Drum Chain | Find part | ||
| 27 | 60 Pitch Cutter Chain | Find part | ||
| 28 | 79 Pitch Drive Chain | Find part | ||
| 29 | Clutch Cable | Find part | ||
| 30 | Complete Throttle Assembly | Find part | ||
| 31 | Engine Spacer Bush | Find part | ||
| 32 | Nut M8 | Find part | ||
| 33 | Lock Washer M8 | Find part | ||
| 34 | Washer M8 | Find part | ||
| 35 | Hex Head Bolt M8*40 | Find part | ||
| 36 | Plastic handle | Find part | ||
| 37 | Washer 32*8.5*1.5 | Find part | ||
| 38 | Domed Label Grass Catcher | Find part | ||
| 39 | Height Indicator Label | Find part | ||
| 40 | Danger Label | Find part | ||
| 41 | Throttle Cable Return Spring | Find part |
